Most vending machine faults that look serious are software issues, and a reset clears many of them in minutes. To reset a vending machine, confirm no transaction is running and switch the unit off at its power switch or outlet. Wait about 60 seconds, power it back on, then let the controller finish its start-up routine.
That sequence covers most models, though details differ by manufacturer. Below you will find when a reset makes sense, how to run one safely, and what to do when the error returns.
When Should You Reset a Vending Machine?
A reset helps with temporary control faults, not with physical damage. Restarting a machine with a failed dispensing motor only delays the repair.
Symptoms a Restart Usually Fixes
These symptoms originate in the controller or its firmware, and a power cycle clears volatile memory and reinitializes every peripheral on the bus.
- The machine freezes or the touchscreen stops responding
- A temporary error code appears on the display
- Selection buttons stop registering presses
- The payment terminal or card reader drops offline
- The machine takes payment but does not dispense
- The unit goes out of service without an obvious cause
Symptoms That Need Inspection Instead
Mechanical and electrical faults present differently, and a restart masks them for a few hours at best. Grinding spiral motors, a tripped breaker or a cabinet holding above its setpoint all require a technician.

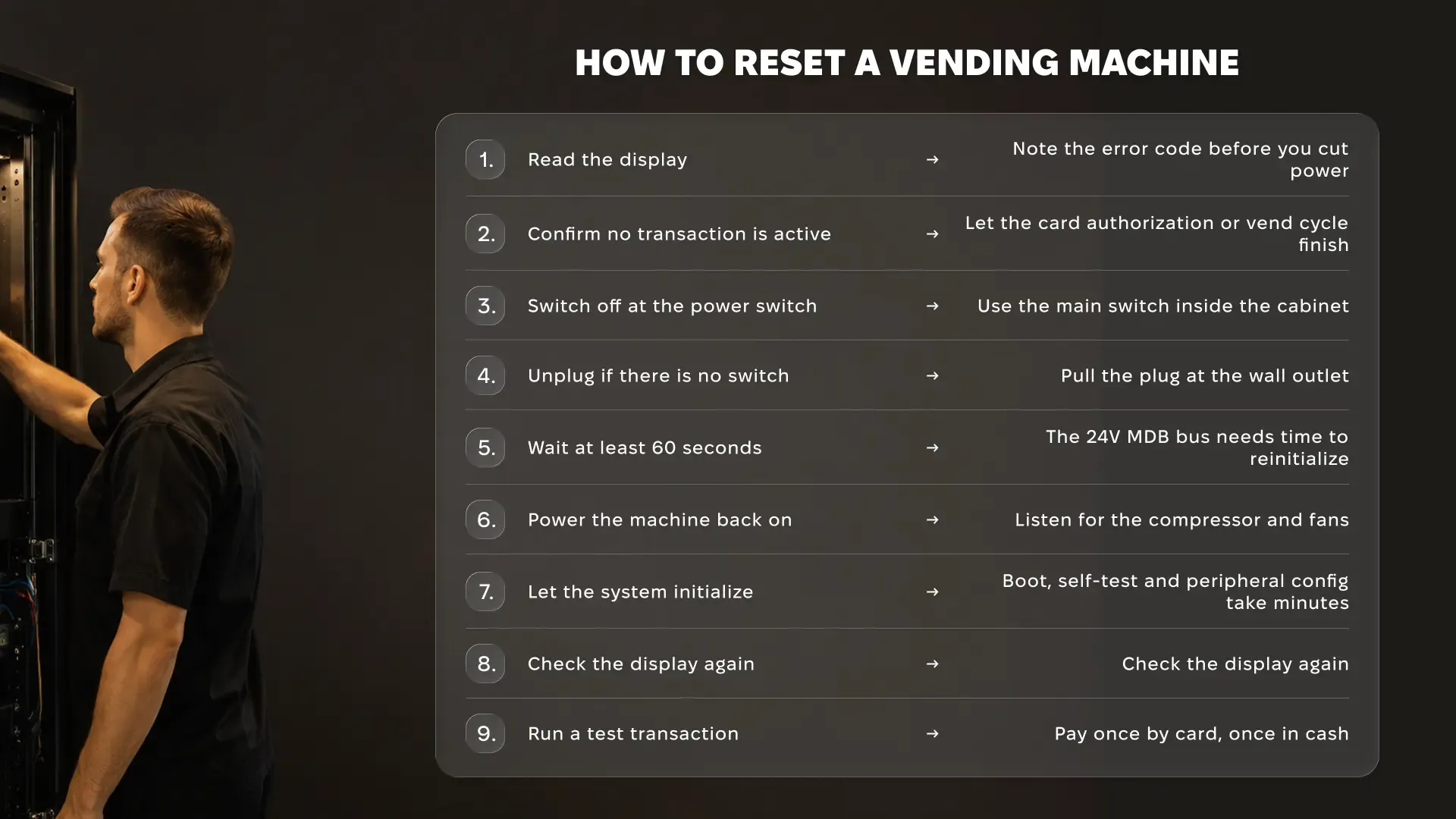

How to Reset a Vending Machine Step by Step
The safest reset is a full power cycle. Work through the steps in order, since an insufficient power-off interval leaves the vending machine controller in its previous state.
- Read the display first. Note the error code before you cut power, because the message often disappears after a restart.
- Confirm no transaction is active. Let any card authorization or vend cycle complete, so the session closes and the credit is settled.
- Switch the machine off at its power switch. Use the main switch inside the cabinet if your model has one.
- Unplug the unit if no switch is available. Pull the plug from the wall outlet, not the machine end.
- Wait at least 60 seconds. Payment devices sit on a 24V MDB bus that needs time without power to reinitialize.
- Power the machine back on. Listen for the compressor and fans starting normally.
- Let the system initialize. Boot, self-test and peripheral configuration take several minutes on connected machines.
- Check the display for the original error. A clear status screen indicates the fault was transient.
- Run a test transaction. Pay once by card and once in cash to confirm both paths work.
Sequences vary between manufacturers. Some models specify a dedicated restart procedure, and cutting power mid-cycle can corrupt a firmware update. Check the manual for your model first.
How to Reset a Vending Machine Without Unplugging It
Cutting power is not always necessary, and on connected machines it is the slower option.
Modern units usually offer one of these routes:
- A restart command inside the service menu on the control panel
- A software reboot triggered from the operator dashboard
- A component-level restart for the payment terminal or the screen alone
Machines with remote monitoring accept a reboot command from the operator application. Operators running a fleet through a telemetry system issue it without driving to the site. Neuroshop micromarkets support that command from the operator dashboard, and our technical team can issue it on request. Electromechanical machines with no service menu have no such option, so a power cycle stays the only method.
Where Is the Vending Machine Reset Button?
Not every machine has one. A dedicated vending machine reset button is common on older controllers and rare on newer touchscreen units.
Where a button exists, it usually sits in one of these places:
- On the VMC board inside the main door, often labeled SERVICE or MODE
- Next to the coin mechanism or the bill validator
- On the power supply unit at the base of the cabinet
- Behind a service panel that opens with an operator key
The button sits inside the locked cabinet on almost every commercial model, so customers cannot reach it. On many controllers it opens the service menu instead of forcing a restart. A long press can enter price programming or reset the resettable sales counters, so consult the manual before pressing anything on a board.
What Is a Vending Machine Reset Code?
There is no universal vending machine reset code. Sequences are model-specific, and they change between generations of the same product line.
What Operators Usually Mean by a Reset Code
The phrase covers three procedures, and mixing them up wastes a service visit.
- A service-mode entry sequence. A board button or keypad combination opens the service menu, where stored faults are read and cleared.
- An error-clear command. A menu item acknowledging a logged fault, often shown as ERROR, EE or CLEAR on the VMC display.
- A remote configuration push. Locked-out cashless terminals need a command from the payment provider, not a local code.
Error Codes You May See Before Resetting
The controller records each fault in its event log, and the display shows an abbreviated form of it. Most codes fall into a few families.
- Coin mechanism errors: tube sensors, jammed coins, failed changer payout
- Bill validator errors: transport motor, optical sensors, full cassette
- Vend and drop sensor errors when a product does not clear the chute
- Cooling errors on refrigerated cabinets, usually a probe or compressor fault
- Cashless device errors reported over MDB by the reader itself
Clearing the display does not clear the record. The controller writes every event to its DEX audit file under the EVA-DTS standard, so the fault remains retrievable through telemetry after the screen resets. That audit file is the first thing a technician reads.
Operators receive access credentials with the machine, in the manual or from the supplier. Sequences posted on forums usually belong to a different controller, and repeated failed attempts lock the service menu on some models.
How to Reset a Vending Machine Card Reader
The card reader is a separate device with its own firmware, network connection and power feed. A payment failure does not always mean the vending machine itself has a fault.
MDB Communication Between Reader and Controller
The reader is addressed on the MDB bus as a cashless device. At power-up it completes a setup and configuration exchange with the VMC, after which the controller polls it on every cycle. Most payment failures occur at initialization or during polling, and the reported code identifies which stage failed. Nayax terminals, for example, separate VMC communication errors from MDB hardware errors.
How to Reset the Card Reader on a Vending Machine
Work through this order before restarting anything.
- Check the machine’s own status. If the display and selection buttons respond normally, the fault is isolated to the reader.
- Read the code on the reader display. Communication faults and hardware faults require different remedies.
- Check power and cabling. A loose MDB harness or unstable supply voltage causes intermittent dropouts.
- Check the network connection. Signal strength, SIM status and APN settings affect the authorization path.
- Restart the reader using the supported method. Some terminals reboot independently, others reinitialize only with the machine.
- Keep the power off long enough. Providers commonly specify 15 seconds or more so the MDB bus reinitializes.
- Wait for the terminal to reconnect. Reauthentication and configuration download take a few minutes on mobile networks.
- Run a test transaction. A small card purchase confirms the reader is processing payments again.
Operators who reset vending machine card readers every week usually have a connectivity problem, not a faulty terminal. Comparing card and cash volumes in your sales data shows whether the problem started this week or months ago.
Driving out to restart frozen machines?
Neuroshop machines report faults remotely and restart without an on-site visit.
What to Do If Resetting the Vending Machine Doesn’t Work
When the same error returns after a restart, the cause is usually a hardware fault. Use the table below for basic vending machine troubleshooting before calling for service.
| Problem | What to Check |
|---|---|
| Machine will not turn on | Power supply, outlet, and circuit breaker |
| Screen stays frozen after restart | Restart procedure and manufacturer manual |
| Card reader is still offline | MDB harness, network signal, terminal status |
| Buttons remain unresponsive | Control panel connections and keypad harness |
| Machine will not dispense | Product jam, drop sensor or spiral motor |
| Error code returns immediately | Controller log and manufacturer documentation |
| Machine repeatedly goes out of service | Professional diagnostics |
Write down what you checked. A note with the error code, the time and the result of the reset gives a technician a starting point. Our guide to common operator mistakes covers the habits that prevent repeat call-outs.
When Should You Call a Vending Machine Technician?
Operator-level diagnostics have a defined limit. Past that point, further attempts risk damage to the machine or the stock inside it.
Contact a technician when:
- The same error returns after every restart
- The machine goes out of service several times a week
- You notice burning smells, tripped breakers or damaged cabling
- The dispensing mechanism is bent, jammed or visibly broken
- A refrigerated unit stops holding its set temperature
The temperature fault takes priority. A refrigerated machine outside its setpoint breaches food safety limits within hours, so remove the stock and record the incident before the repair slot. Neuroshop customers do not reach this stage alone: our engineers read the controller log remotely and schedule the service visit.
How Smart Vending Machines Make Troubleshooting Easier
Most resets happen because the fault was detected late. Connected machines invert that sequence.
Telemetry transmits machine status continuously, so the error reaches the operator at the moment it is logged, not when a customer reports it. Remote diagnostics retrieve the DEX audit file, the sales history and the temperature record together. Many faults clear with a remote restart, and the rest are diagnosed before the van leaves the depot.
Neuroshop AI micromarkets work on that model, and full support comes with the equipment. Installation, remote diagnostics, firmware updates and spare parts stay on our side.
Running vending machines across Europe?
Neuroshop equipment reports faults early and keeps downtime measured in minutes.
Final Thoughts
A vending machine reset follows a simple order. Identify the problem, run a safe power cycle, then check the machine status. Consult the model documentation when the sequence differs, and call a technician if the error returns. Most transient faults clear at the second step. A fault that survives a power cycle is a hardware or configuration problem, and the controller log identifies which.
Frequently Asked Questions
How do you reset a vending machine without unplugging it?
Some machines offer a restart command in the service menu or through an operator dashboard. Others require a full power cycle. The available option depends on the model, so check the manufacturer manual first.
Is there a universal vending machine reset code?
No. Service sequences depend on the manufacturer, the model, the controller board and the firmware version. Operators normally receive the correct procedure with the machine, or from the supplier’s technical support team.
How do you turn on a vending machine?
Connect the machine to a grounded outlet and switch on the main power switch inside the cabinet. Wait for the controller to finish its start-up sequence. Refrigerated units need several hours to reach temperature.
What should I do when a bag is stuck in the vending machine?
Never shake or tilt the machine, because tipping causes serious injuries every year. On a public machine, contact the operator listed on the front. Owners should follow the manual’s jam procedure.
How long should I wait before restarting a vending machine?
About 60 seconds suits most models. Payment devices need at least 15 seconds without power. The interval lets the controller clear volatile memory, and refrigerated units need longer before a second restart.
